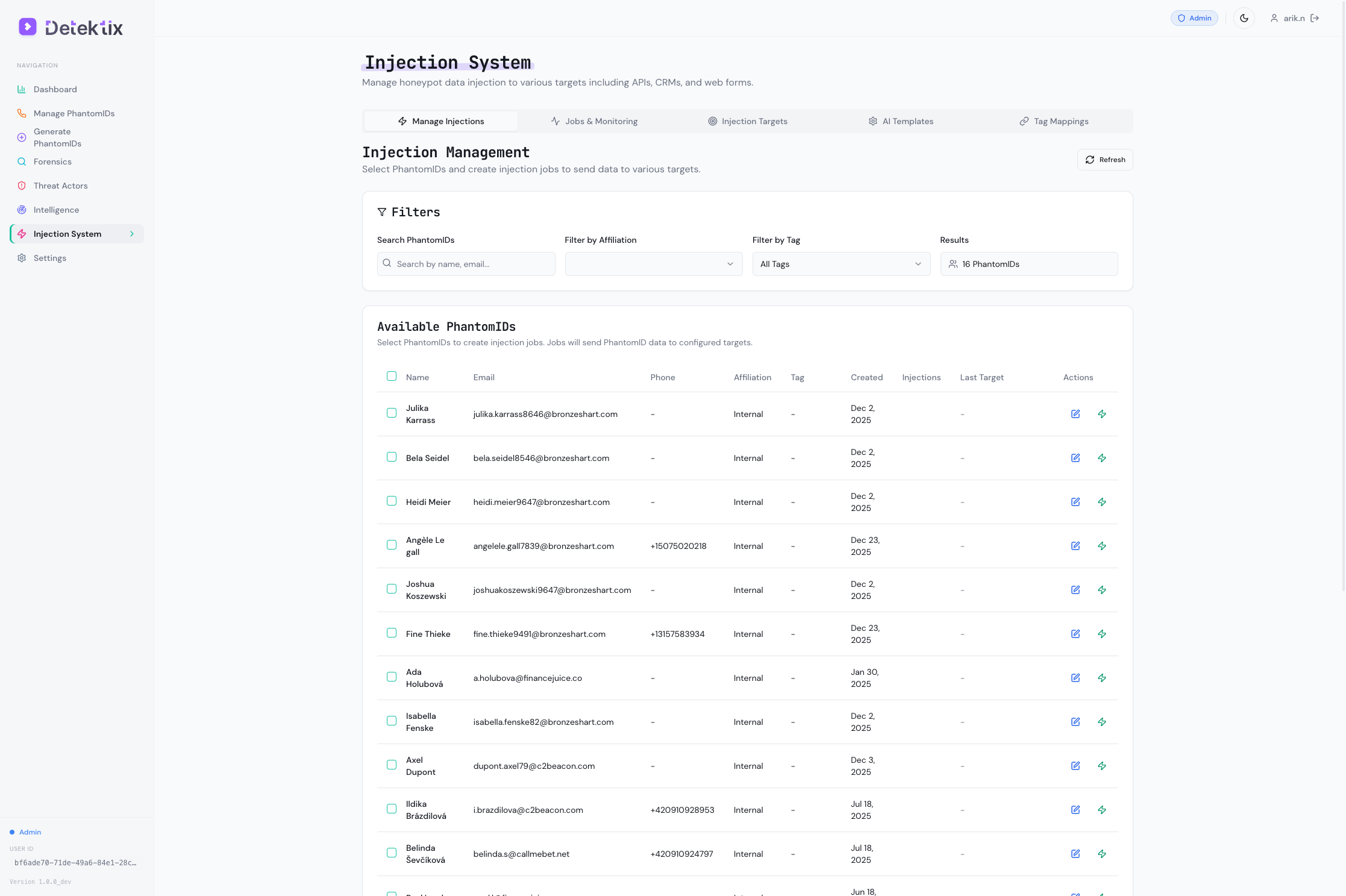

Injection System

The injection system deploys PhantomIDs into external platforms — CRMs, websites, databases, and communication tools. When planted data is later accessed or leaked, Detektix detects it.

How Injection Works

Injection follows a structured workflow:

Create Target → Map Tags to Target → Generate Jobs → Execute → Track Results

1. Create an injection target — Define where PhantomIDs will be deployed (a CRM API, a web form, a Slack channel, etc.)
2. Map tags to targets — Configure which PhantomIDs (by tag) should be injected into which targets
3. Jobs are created — Either manually or automatically based on mapping rules
4. Execution — The injection engine processes each job using the appropriate plugin
5. Tracking — Results are logged with success/failure status, external IDs, and execution details

Injection Target Types

The system supports multiple injection channels through a plugin architecture:

Supported Target Types

The following target types are currently supported:

Target Type	Plugin	Description
api	REST API	Generic HTTP API calls (POST/PUT/PATCH) to any platform
web_form_browser	Web Form (AI)	AI-powered browser automation for filling web registration forms
web_form_api	Web Form (API)	Form submission via direct HTTP requests
crm_salesforce	CRM	Salesforce contact/lead creation
crm_hubspot	CRM	HubSpot contact creation
crm_pipedrive	CRM	Pipedrive deal/contact creation
crm_symplify	CRM	Symplify marketing list injection
s3_bucket	Cloud Storage	AWS S3 file uploads
database_direct	Database	Direct database record insertion
email_list	Email	Email list injection
custom	Custom	Extensible plugin for custom targets

Additionally, platform-specific integrations (Zendesk, Slack) are available as dedicated plugins.

---

REST API

Deploy PhantomIDs via direct API calls to CRMs, marketing platforms, and custom systems.

Setting	Description
URL	The API endpoint to send data to
Method	HTTP method: POST, PUT, or PATCH
Authentication	Bearer token, Basic auth, or API key
Field Mapping	Maps PhantomID fields (name, email, phone) to the target API's expected fields
Headers	Custom HTTP headers if required

Ideal for: Salesforce, HubSpot, custom CRMs, marketing automation platforms.

Web Form (Browser Automation)

Deploy PhantomIDs by automatically filling and submitting web registration forms using AI-powered browser automation.

Setting	Description
URL	The registration page URL
AI Instructions	Natural language instructions for the form-filling AI
Pre-actions	Steps to perform before form filling (click cookie banners, navigate menus)
Post-actions	Steps after submission (click confirmation links, verify success)
Success Detection	How to detect successful submission (URL change, CSS selector, confirmation text)
CAPTCHA Handling	Optional CAPTCHA solving integration
Proxy	Optional proxy configuration for geographic targeting

The AI reads the form, understands the fields, and fills them with the appropriate PhantomID data. It handles dynamic forms, dropdowns, date pickers, and multi-step registrations.

CRM Platforms

Native integrations with specific CRM systems:

• Zendesk — Creates contacts or support tickets with PhantomID data
• Symplify — Adds contacts to marketing lists with field mapping

These plugins understand the target platform's data model and handle the integration natively.

Slack

Upload PhantomID data to Slack channels:

Setting	Description
Channel	Target Slack channel ID
Format	Upload format: CSV, JSON, or plain text
Bot Token	Slack bot authentication token

Useful for testing whether data shared in internal Slack channels gets leaked.

Database

Insert PhantomID records directly into target databases. Supports configurable connection strings, table names, and field mappings.

Cloud Storage (S3)

Upload PhantomID data files to AWS S3 or compatible storage:

Setting	Description
Bucket	Target S3 bucket name
Path	File path within the bucket
Format	File format (CSV, JSON)
Credentials	AWS access key and secret

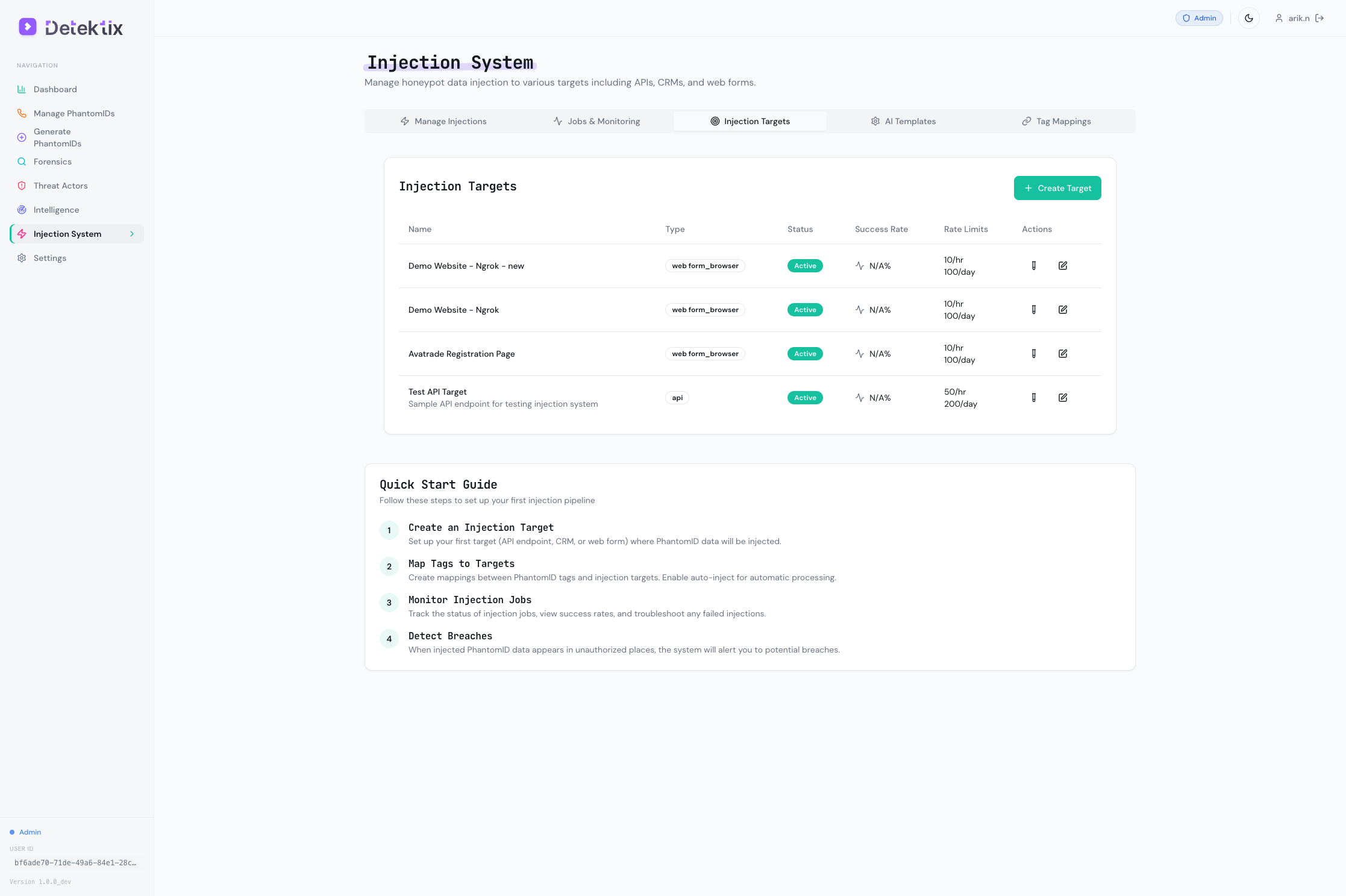

Creating Injection Targets

Navigate to Injection → Targets to manage your injection targets.

Step 1: Choose Target Type

Select the appropriate plugin type based on where you want to deploy PhantomIDs.

Step 2: Configure Connection

Enter the target platform's connection details — URL, authentication, and any platform-specific settings.

Step 3: Map Fields

Define how PhantomID fields map to the target's expected fields:

PhantomID Field	Example Target Field
First Name	first_name, firstName, vorname
Last Name	last_name, lastName, nachname
Email	email, email_address
Phone	phone, telephone, mobile
Address	street, city, zip, country
Date of Birth	dob, birthdate

Step 4: Set Rate Limits

Configure rate limiting to control injection speed:

• Requests per hour — Maximum jobs executed per hour
• Requests per day — Maximum jobs executed per day
• Delay between requests — Minimum time between consecutive injections

Rate limiting prevents overwhelming target platforms and maintains operational security.

Step 5: Test and Validate

Use the validation function to test your target configuration with sample data before enabling production injections.

Tag-to-Target Mappings

Mappings are the rules that connect PhantomIDs to injection targets. They answer the question: "Which PhantomIDs should go where?"

Navigate to Injection → Mappings to configure these rules.

How Mappings Work

Each mapping connects:

• A tag (which identifies a group of PhantomIDs)
• An injection target (where those PhantomIDs should be deployed)
• An affiliation (scoping the mapping to a business unit)

Mapping Settings

Setting	Description
Tag	The PhantomID tag that triggers this mapping
Target	The injection target to deploy to
Affiliation	Business unit scope
Auto-inject	When enabled, new PhantomIDs with this tag are automatically queued for injection
Priority	Execution priority (higher priority jobs run first)
Schedule	Optional cron schedule for periodic injection
Delay	Hours to wait before injecting newly tagged PhantomIDs
Filter	Additional conditions (e.g., only PhantomIDs from specific countries)

Auto-Injection

When auto-inject is enabled on a mapping:

1. A new PhantomID is created (or an existing one is tagged)
2. The system checks all mappings for that tag
3. For each matching mapping with auto-inject enabled, an injection job is automatically created
4. Jobs are queued and executed according to priority, schedule, and rate limits

This creates a fully automated pipeline: generate PhantomIDs → tag them → they're automatically deployed to the right targets.

Job Management

Navigate to Injection → Jobs to monitor and manage injection jobs.

Job Statuses

Status	Description
Pending	Job created, waiting to be queued
Queued	Job is in the execution queue
Running	Job is currently being executed
Completed	Job finished successfully — PhantomID was deployed
Failed	Job encountered an error — check execution log for details
Cancelled	Job was manually cancelled before execution
Retrying	Job failed and is scheduled for automatic retry

Job Details

Each job records:

• PhantomID — Which identity was being deployed
• Target — Where it was being deployed to
• Status — Current job state
• External ID — The ID assigned by the target platform (used for breach tracking)
• Execution log — Detailed step-by-step log of the injection process
• Error message — If failed, what went wrong
• Timestamps — Created, started, completed

Retry Logic

Failed jobs can be automatically retried based on the target's retry configuration. The system uses exponential backoff to avoid overwhelming targets that may be temporarily unavailable.

Manual Controls

• Cancel — Stop a pending or queued job before it executes
• Retry — Manually retry a failed job
• Bulk actions — Cancel or retry multiple jobs at once

Breach Detection

When a PhantomID is successfully injected, the system tracks:

• External ID — The unique identifier assigned by the target platform
• Injection timestamp — When the PhantomID was deployed
• Target platform — Where it was deployed

If that PhantomID is later contacted (call, SMS, email), the system cross-references the injection history to determine which deployment was the source of the data exposure. This is how Detektix traces leaks back to specific platforms.
